CR – Compact force sensor with flexible installation options for pulley
- 3 sizes with shaft journal diameters of 8, 10 and 12 mm
- Nominal force ratings from 50 to 1500 N (11 to 330 lbf.)
- Measuring range 30:1, accuracy class ±0.5%
- Options include high temperature and vacuum chamber (to 10-7 hPa) construction
- Overload protection rating of 10-times nominal force, stainless steel sensor body
The CR-Series force sensor offers compact dimensions and flexible installation options, and are designed for the measurement of tension on continuous material processing lines for filament materials. This product will accept a huge variety of different standard pulleys and therefore be applied versatilely. The product can be supplied with a Pilot or without a Pilot at the back the unit. In addition, flexible mounting options include the ability to install the unit utilizing either four fasteners from the front or a single fastener from the rear. The included dowel pin can also be incorporated between force measuring bearing and the machine frame to ensure proper unit orientation. For installations where a Pillow Block mount is required the optional bracket can be utilized. Shaft journal diameters of 8, 10 and 12 mm allow easy installation of standard pulleys. Standard pulleys are not supplied by FMS.
General technical details
| Sensitivity | 1,8 mV/V |
|---|---|
| Tolerance of sensitivity | <± 2 % |
| Accuracy class | ± 0,5 % |
| Temperature coefficient | ± 0,1 %/10K |
| Temperature range | -10 to 60 °C (14 to 140 F) |
| Input resistance | 350 Ω |
| Power supply | 1 to 10 VDC |
| Overload protection rating | 10 times nominal force |
| Material main body | Stainless steel |
| Protection class | IP 42 |
| Electrical connection | Male connector M16x0.75, 5-pole |
| Repeatability error | 0.05% |
| Measuring range | 30:1 |
Available sizes
Option descriptions
| Name | FO | Description | Picture |
|---|---|---|---|

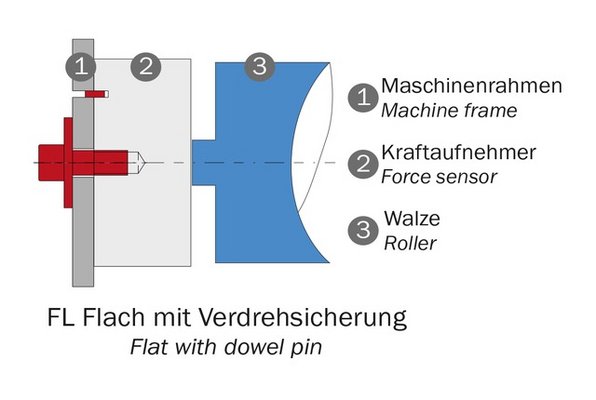

| FL | flat face of force sensor, without shoulder, single screw mount, with dowel pin |   | |

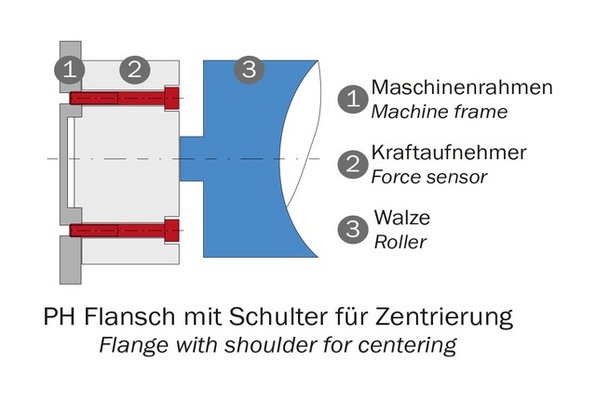

| PH | Flange mount with 4 screws, pilot hole for centering |   | |
| H14 | right-angle connector in scope of supply, replaces straight connector |   | |
| H16 | temperature range up to 120°C (248°F) |   | |
| H21 | electrical connection with PG gland with 5 m (16 ft.) cable, replaces connector |   | |
| H31 | for vacuum applications to 1E-7 hPa , 1E-5 Torr, temperature range up to 120°C (248°F) |   | |
| H32 | vacuum to 1E-7 hPa , 1E-5 Torr, up to 150°C (302°F), with pg-gland and 5 m (16 ft.) cable |   | |
| H33 | temperature range up to 150°C (302°F), with pg-gland and 5 m (16 ft.) cable |   |
Your benefits
- Easy Installation of standard pulleys
- For a wide range of applications
- Precise measuring results
- No need to change a standard machine design for special applications
- Robust and durable
Features
- 3 sizes with shaft journal diameters of 8, 10 and 12 mm
- Nominal force ratings from 50 to 1500 N (11 to 330 lbf.)
- Measuring range 30:1, accuracy class ±0.5%
- Options include high temperature and vacuum chamber (to 10-7 hPa) construction
- Overload protection rating of 10-times nominal force, stainless steel sensor body
Industry
Wire and Cable, Non-ferous Metals, Yarns and Fibres
