Pin Assignment

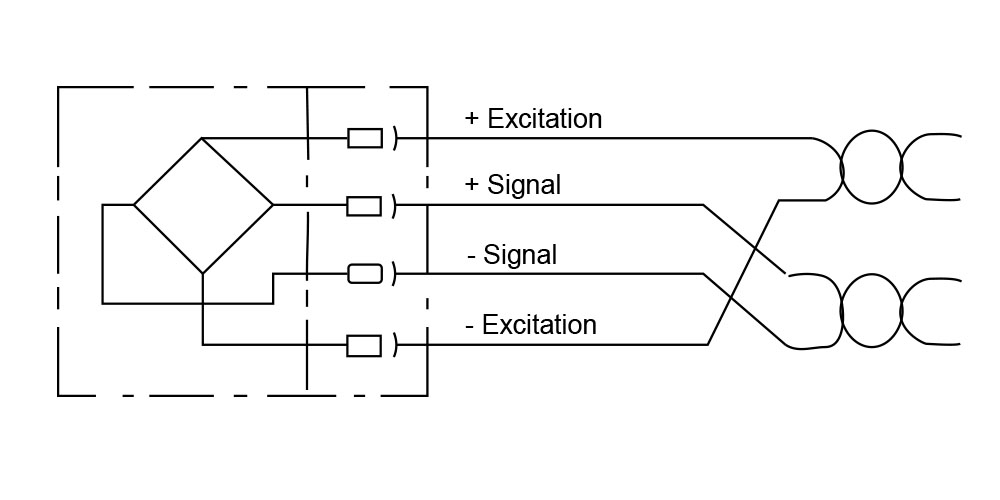

We have large range of force sensors requiring different connection plugs. The table provides a simple overview of all variants. Please feel free to contact our Customer Service with any questions: infofms-technologycom or +41 44 852 80 80.



+ Excitation C
+ Signal A
- Signal D
- Excitation B
+ Excitation C
+ Signal A
- Signal D
- Excitation B
+ Excitation C
+ Signal A
- Signal D
- Excitation B
+ Excitation 1 3
+ Signal 1 4
- Signal 1 1
- Excitation 1+2 2
+Excitation 2 6
+Signal 2 7
-Signal 2 5
+ Excitation 3
+ Signal 1
- Signal 4
- Excitation 2
+ Excitation 2
+ Signal 1
- Signal 4
- Excitation 3
+ Excitation 3
+ Signal 1
- Signal 4
- Excitation 2
+ Excitation C
+ Signal A
- Signal D
- Excitation B
  with 4-pole connector with 5-pole connector
+ Excitation C 3
+ Signal A 1
- Signal D 4
- Excitation B 2
(not assigned)   5
    with cable
+ Excitation 3 green
+ Signal 1 white
- Signal 2 grey
- Excitation 4 yellow
+ Excitation C
+ Signal A
- Signal D
- Excitation B
+ Excitation C
+ Signal A
- Signal D
- Excitation B
+ Excitation 3
+ Signal 1
- Signal 4
- Excitation 2
